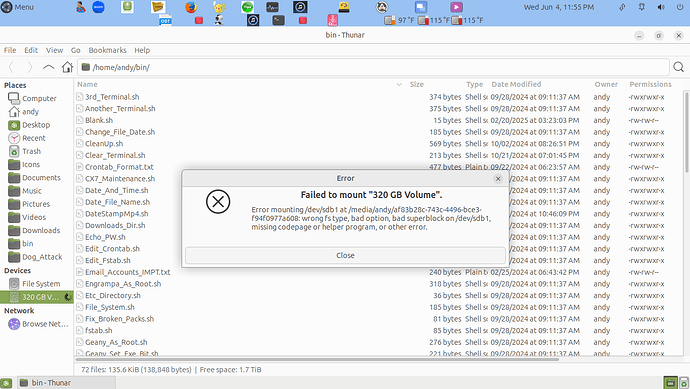

Failed to mount

I formatted this to ext4.

I am getting this message.

How can I make this 2nd drive useable?

Thanks.

What is the make/model of the drive?

Please confirm that is a USB drive that you are attempting to auto-mount, not defined as an entry in /etc/fstab.

4 Likes

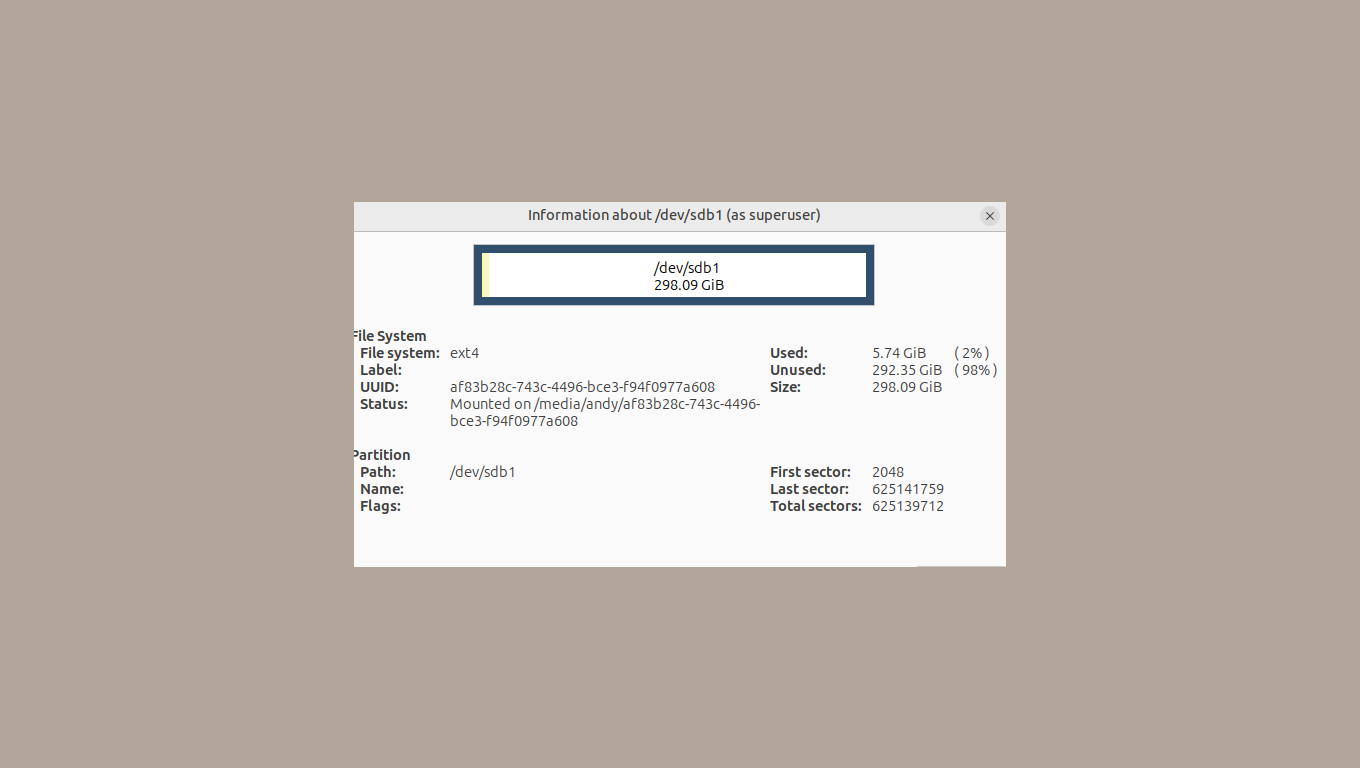

The drive is a platter drive.

blkid
/dev/sda2: UUID="26c126a6-290a-4019-a32b-f6bb290663ea" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="5d202965-7027-4a53-baba-da14fa16a0e2"
/dev/sdb1: UUID="af83b28c-743c-4496-bce3-f94f0977a608" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="000f0791-01"

Can someone help me?

Hi, @fixit7 :slight_smile:

Could you please paste the output of the following commands (assuming the output does not include something that you want to keep private, for some reason)? I believe they may help to better understand your setup:

inxi --disk

lsblk -n | grep --invert-match ^loop

for drive in $(inxi --disk | grep 'ID' | awk  '{ print $2 }');do echo; sudo fdisk -l $drive; echo;  done

grep ^[^#] /etc/fstab

df -hTP | grep --invert-match 'tmpfs' | grep --invert-match 'efivarfs'

1 Like

Thanks Ricardo.

~$ inxi --disk
Drives:
  Local Storage: total: 2.11 TiB used: 40.21 GiB (1.9%)
  ID-1: /dev/sda vendor: Western Digital model: WD2003FYPS-27Y2B0
    size: 1.82 TiB
  ID-2: /dev/sdb vendor: Maxtor model: STM3320620AS size: 298.09 GiB

~

$
lsblk -n | grep --invert-match ^loop
sda      8:0    0   1.8T  0 disk
├─sda1   8:1    0     1M  0 part
└─sda2   8:2    0   1.8T  0 part /var/snap/firefox/common/host-hunspell
                                 /
sdb      8:16   0 298.1G  0 disk
└─sdb1   8:17   0 298.1G  0 part /media/andy/af83b28c-743c-4496-bce3-f94f0977a608
sr0     11:0    1  1024M  0 rom

~$
for drive in $(inxi --disk | grep 'ID' | awk '{ print $2 }');do echo; sudo fdisk -l $drive; echo; done

grep ^[^#] /etc/fstab

[sudo] password for andy:
Disk /dev/sda: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: WDC WD2003FYPS-2
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 947D6337-AEFC-4E3E-8C26-E1C7E2E60634

Device     Start        End    Sectors  Size Type
/dev/sda1   2048       4095       2048    1M BIOS boot
/dev/sda2   4096 3907026943 3907022848  1.8T Linux filesystem


Disk /dev/sdb: 298.09 GiB, 320072933376 bytes, 625142448 sectors
Disk model: MAXTOR STM332062
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x000f0791

Device     Boot Start       End   Sectors   Size Id Type
/dev/sdb1        2048 625141759 625139712 298.1G 83 Linux

/dev/disk/by-uuid/26c126a6-290a-4019-a32b-f6bb290663ea / ext4 defaults 0 1
/swap.img	none	swap	sw	0	0
~$ df -hTP | grep --invert-match 'tmpfs' | grep --invert-match 'efivarfs'
Filesystem     Type   Size  Used Avail Use% Mounted on
/dev/sda2      ext4   1.8T   41G  1.8T   3% /
/dev/sdb1      ext4   293G   32K  278G   1% /media/andy/af83b28c-743c-4496-bce3-f94f0977a608
3 Likes

Hi again, @fixit7 :slight_smile:

Thanks for the outputs! Based on the following command and output, the "ext4" filesystem of your 300 GB HDD (hard disk drive) is already (successfully) mounted on /media/andy/af83b28c-743c-4496-bce3-f94f0977a608 :

~$ df -hTP | grep --invert-match 'tmpfs' | grep --invert-match 'efivarfs'
Filesystem     Type   Size  Used Avail Use% Mounted on
/dev/sda2      ext4   1.8T   41G  1.8T   3% /
/dev/sdb1      ext4   293G   32K  278G   1% /media/andy/af83b28c-743c-4496-bce3-f94f0977a608

I'm guessing you may now want to do 2 things:

1. - Change the ownership of the /media/andy and the /media/andy/af83b28c-743c-4496-bce3-f94f0977a608 directories so those directories get owned by the user andy (based on the screenshot you've included in the first post of this topic, I believe that andy is the user you use). To do that, you should use the following two commands (in sequence):

sudo chown -v andy /media/andy

sudo chown -v andy /media/andy/af83b28c-743c-4496-bce3-f94f0977a608

2. - Change the content of the /etc/fstab file to add the filesystem mounted in the /media/andy/af83b28c-743c-4496-bce3-f94f0977a608 directory to the list of filesystems that should be mounted at boot. To do that, I would :

2.1. - First, create a backup of the existing /etc/fstab file:

sudo cp -piv /etc/fstab /etc/fstab.ORIG.$(date +%Y-%m-%d)

2.2. - Append a line with the desired mount to the /etc/fstab file. I believe you can enter the following command to do that:

sudo bash -c 'echo "UUID=af83b28c-743c-4496-bce3-f94f0977a608  /media/andy/af83b28c-743c-4496-bce3-f94f0977a608  ext4 defaults 0 2" >> /etc/fstab'

2.3. - Verify that the new /etc/fstab is good. It should be good if a sudo findmnt --verify returns only the following warning (and no other warnings or errors):

$ sudo findmnt --verify
   [W] your fstab has been modified, but systemd still uses the old version;
       use 'systemctl daemon-reload' to reload

0 parse errors, 0 errors, 1 warning

2.4. - Assuming the output of sudo findmnt --verify was as described above, let's now make systemd use the new version of the /etc/fstab :

sudo systemctl daemon-reload

2.5 - Finally, let's mount all the fillesystems:

sudo mount -av

I hope this helps :slight_smile: Please, keep us posted!

2 Likes

I made some changes before I saw your post.

The fstab is messed up.

I re-installed UM 24.02 alongside my older version.

I have not lost any more files. :slight_smile:

# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
# <file system> <mount point>   <type>  <options>       <dump>  <pass>
# / was on /dev/sda4 during curtin installation
/dev/disk/by-uuid/4ae1c922-c376-438c-b75e-85627897fede / ext4 defaults 0 1
# /boot/efi was on /dev/sda3 during curtin installation
/dev/disk/by-uuid/CC37-7311 /boot/efi vfat defaults 0 1
/swap.img	none	swap	sw	0	0

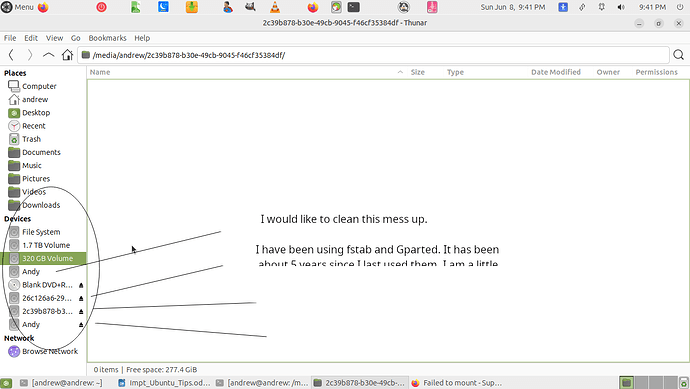

I would like to fix this to get rid of all the numbers.

/media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea/home/andy/Documents/

sudo findmnt --verify
[sudo] password for andrew:
none
   [W] non-bind mount source /swap.img is a directory or regular file

0 parse errors, 0 errors, 1 warning
1 Like

Hi again, @fixit7 :slight_smile:

You wrote:

You say that the "The fstab is messed up". Maybe you're saying that because you got the following warning when running sudo findmnt --verify: "[W] non-bind mount source /swap.img is a directory or regular file" ? If that's the case, I believe that you may proceed even with that particular warning (I usually use a swap partition, instead of a swap file, so I don't get that warning).

Nice. That's great :slight_smile:

OK. So, to do that, I would:

1. - Unmount the /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea in case it's mounted:

cd

sudo umount -v /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea

2. - Rename /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea to, for instance, /media/andrew/disk2 :

sudo mv -v /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea /media/andrew/disk2

3. - Change the ownership of the /media/andrew and the /media/andrew/disk2 directories so those directories get owned by the user andrew (based on your last message, it seems that andrew is the user you use in this new installation). To do that, you should use the following two commands (in sequence):

sudo chown -v andrew /media/andrew

sudo chown -v andrew /media/andrew/disk2

4. - Change the content of the /etc/fstab file to add the filesystem mounted in the /media/andrew/disk2 directory to the list of filesystems that should be mounted at boot. To do that, I would :

4.1. - First, create a backup of the existing /etc/fstab file:

sudo cp -piv /etc/fstab /etc/fstab.ORIG.$(date +%Y-%m-%d)

4.2. - Append a line with the desired mount to the /etc/fstab file. I believe you can enter the following command to do that:

sudo bash -c 'echo "UUID=af83b28c-743c-4496-bce3-f94f0977a608  /media/andrew/disk2  ext4 defaults 0 2" >> /etc/fstab'

4.3. - Verify that the new /etc/fstab is good. It should be good if a sudo findmnt --verify returns only the following warning (and no other warnings or errors):

$ sudo findmnt --verify
   [W] non-bind mount source /swap.img is a directory or regular file
   [W] your fstab has been modified, but systemd still uses the old version;
       use 'systemctl daemon-reload' to reload

0 parse errors, 0 errors, 2 warnings

4.4. - Assuming the output of sudo findmnt --verify was as described above, let's now make systemd use the new version of the /etc/fstab :

sudo systemctl daemon-reload

4.5 - Finally, let's mount all the fillesystems:

sudo mount -av

I hope this helps :slight_smile: Please, keep us posted!

2 Likes

The "terse" summary of what Ricardo outlined quite well is that, for reference to drives via UUID, the format is

#device    mount_point    fstype    mount_options   ???  boot_mount_sequence

and one line in my /etc/fstab file looks like this:

UUID=7e9a663e-ff1d-4730-8544-c37519056b6f 	/DB001_F2 	ext4 	defaults,nofail,journal_checksum,journal_async_c
ommit,commit=15,errors=remount-ro,journal_ioprio=2,data_err=ignore,nodiscard	0	1
3 Likes

I can not find a mountpoint

lsblk
NAME   MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
loop0    7:0    0  73.9M  1 loop /snap/core22/1748
loop1    7:1    0     4K  1 loop /snap/bare/5
loop2    7:2    0   258M  1 loop /snap/firefox/5751
loop3    7:3    0  11.1M  1 loop /snap/firmware-updater/167
loop4    7:4    0   516M  1 loop /snap/gnome-42-2204/202
loop5    7:5    0  91.7M  1 loop /snap/gtk-common-themes/1535
loop6    7:6    0  44.4M  1 loop /snap/snapd/23545
loop7    7:7    0  10.8M  1 loop /snap/snap-store/1248
loop8    7:8    0   568K  1 loop /snap/snapd-desktop-integration/253
loop9    7:9    0  50.9M  1 loop /snap/snapd/24505
loop10   7:10   0  73.9M  1 loop /snap/core22/1981
sda      8:0    0   1.8T  0 disk
├─sda1   8:1    0     1M  0 part /media/andrew/Andy
├─sda2   8:2    0   1.6T  0 part /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea
├─sda3   8:3    0     1G  0 part /boot/efi
└─sda4   8:4    0 246.2G  0 part /
sdb      8:16   0 298.1G  0 disk
└─sdb1   8:17   0 298.1G  0 part /media/andrew/C27D-D388
sr0     11:0    1   4.4G  0 rom
andrew@andrew:~$ blkid
/dev/sda4: UUID="4ae1c922-c376-438c-b75e-85627897fede" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="6133a22b-d975-4f0d-b607-4f3c9fa71bcb"
1 Like

Hi again, @fixit7 :slight_smile:

So, it seems that with your new Ubuntu MATE 24.04.2 re-installation, the initial scenario probably has changed (at least some of the UUID appear to have changed). Could you please tell the output of the following commands:

lsblk -f | grep --invert-match '^loop'

grep ^[^#] /etc/fstab

df -hTP | grep --invert-match 'tmpfs' | grep --invert-match 'efivarfs'
2 Likes

Thanks again.

NAME   FSTYPE FSVER LABEL UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
sda
├─sda1 ext4   1.0   Andy  1438d2a9-cfed-41ae-bb56-d97a5d78a0c5
├─sda2 ext4   1.0         26c126a6-290a-4019-a32b-f6bb290663ea
├─sda3 vfat   FAT32       CC37-7311
└─sda4 ext4   1.0         4ae1c922-c376-438c-b75e-85627897fede  213.3G     6% /
sdb
└─sdb1 vfat   FAT32       C27D-D388
sr0

/dev/disk/by-uuid/4ae1c922-c376-438c-b75e-85627897fede / ext4 defaults 0 1
/swap.img	none	swap	sw	0	0
UUID=4ae1c922-c376-438c-b75e-85627897fede / ext4 defaults

Filesystem     Type      Size  Used Avail Use% Mounted on
/dev/sda4      ext4      242G   16G  214G   7% /
1 Like

Hi again, @fixit7 :slight_smile:

OK, thanks for the outputs So, I've noticed the following:

1 - You've created a 1 MB (only one megabyte) partition in the first disk - /dev/sda1 with UUID 1438d2a9-cfed-41ae-bb56-d97a5d78a0c5 and an associated "ext4" filesystem - that apparently you want to mount in /media/andrew/Andy ?

2 - You've created a 1.6 TB (file (one point six terabytes) partition in the first disk - /dev/sda2 with UUID 26c126a6-290a-4019-a32b-f6bb290663ea and an associated "ext4" filesystem - that apparently would get mounted at /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea

What do you want that mount /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea to be (given that you previously said that you wanted to "get rid of all the numbers")? If you want it to be /media/andrew/disk2 you can follow the instructions of my last post:

2 Likes

Mount points are like any other:

Step 1: you create one (i.e. mkdir ${dPath} )

Step 2a: either make reference to that fullpath mountpoint ( ${dPath ) in the /etc/fstab.

That fullpath mountpoint could have the form similar to

      /andy_usb
or    /andy_disk2
or    /media/andrew/26c126a6-290a-4019-a32b-f6bb290663ea
or    /local/26c126a6-290a-4019-a32b-f6bb290663ea
or    /local/andy_disk2
etc.

or Step 2b: you could use the mount command directly,

mount -v -t ${dFtype} ${mOptions} --uuid ${dUuid} ${dPath}
mount -v -t ext4 ${mOptions} --uuid 26c126a6-290a-4019-a32b-f6bb290663ea /andy_disk2
3 Likes

I am making some progress. Sometimes I go forward 1 step and back 2 steps.

I started out with a 2 Tb drive with Ubuntu-Mate 24.02 on it and a second Maxtor drive (about 300 Mb) that I used as a backup drive in case my primary drive failed.

1 Like

That is so funny that you put terabytes in bold font.

I bought my desktop system about 10 years ago.

I think the builder was thinking ahead.

I will never run out of room. :slight_smile:

1 Like
