Setting up for workable ACPI Suspend or Hibernate

Support & Help Requests
1

I've tried twice, previously to make this work, without success. I want to make it work this time.

I discovere that I had a BIOS setting that was disabled, and corrected that, so now I think that everyting that I attempt, this time around, should work,

Starting with the fundamentals, the following values are being reported:

cat /sys/power/state
freeze mem disk

cat /sys/power/mem_sleep
s2idle [deep]

Before I enable the ACPI function in the BIOS, I was sure that

  • I had 4 options listed for the first line, and
  • I had 3 options listed for the second line.

Is something missing? or do I need to revisit the BIOS?

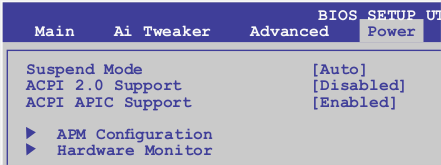

My BIOS menu options are as follows:

SNAPSHOT__BIOS__PowerOptions__Top
SNAPSHOT__BIOS__PowerOptions__Top441×165 11.1 KB

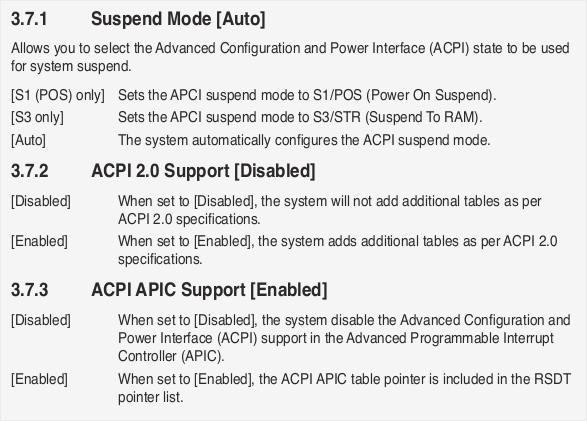

The available choices are as follows:

SNAPSHOT__BIOS__PowerOptions__Selections
SNAPSHOT__BIOS__PowerOptions__Selections587×421 21.5 KB

The above are taken from the Product Guide for the following Motherboard:

inxi -Mxxx
Machine:
  Type: Desktop Mobo: ASUSTeK model: M4A78-E v: Rev 1.xx
    serial: 101048580000313 BIOS: American Megatrends v: 2603 date: 04/13/2011

For previous failed attempts, those settings were

  • [Auto]
  • [Disabled]
  • [Enabled]

I've updated the BIOS to reflect the following selections:

  • [S3 Only]
  • [Enabled]
  • [Enabled]

I want to get the above correct, before I

  • create the SWAPFILE
  • get the UUID for that SWAPFILE,
  • get the OFFSET value for the SWAPFILE,
  • create the necessary entry in the fstab

Can someone please confirm for me that the values reported under /sys/power are OK to proceed?

2

So, trying to make "hibernate" work, would our more intrepid Members consider reviewing and testing the following script, with a view to possible general use by the Community?

Script [OS_Admin__CreateSwapfile.sh]:

#!/bin/sh

####################################################################################################
###
###	Script to create new swapfile (with size equal to, or greater than, available RAM)
###
###	Auth:	Eric Marceau, Ottawa, Ontario, CANADA
###	Vers:	2.1, 2025-11-31
###	Lic:	GPLv3
###
###	Swap file was previously, and remains, defined as follows in /etc/fstab
###		/swapfile	none	swap	sw	0	0
###
####################################################################################################



####################################################################################################
###
###	Function to perform all necessary steps to create a SWAP file of the required size.
###
####################################################################################################

createNewSwap()
{
	echo "\n\t Creating new SWAP file '${newSwap}' ...\n"

	dd status=progress if=/dev/zero of="${newSwap}" bs=1M count=$((SIZE*1024))
	test $? -eq 0 || { echo "\n\t Failed 'dd' operation to create SWAP file. [A3]\n" ; exit 1 ; }
	verifyContiguousBlocks
	echo "\t [A3] ..."

	chmod 0600 "${newSwap}"
	test $? -eq 0 || { echo "\n\t Failed to set required privileges on '${newSwap}'. [A4]\n" ; exit 1 ; }
	echo "\t [A4] ..."
	ls -l "${newSwap}" | awk '{ printf("\t\t%s\n", $0 ) }'

	#mkswap "${newSwap}" 2>&1 |  awk '{ printf("\t\t%s\n", $0 ) }'
	mkswap "${newSwap}"
	test $? -eq 0 || { echo "\n\t Failed to format '${newSwap}' as swap partition. [A5]\n" ; exit 1 ; }
	echo "\t [A5] ..."

	#swapon "${newSwap}" 2>&1 |  awk '{ printf("\t\t%s\n", $0 ) }'
	swapon "${newSwap}"
	test $? -eq 0 || { echo "\n\t Failed to enable '${newSwap}' as swap partition. [A6]\n" ; exit 1 ; }
	echo "\t [A6] ..."

	swapon --show 2>&1 |  awk '{ printf("\t\t%s\n", $0 ) }'
	echo "\t [A7] ..."

	testor=`swapon --show 2>&1 | grep "${newSwap}" `
	test -z "${testor}" && { echo "\n\t Failed to enable '${newSwap}' as active SWAP space.  Unable to proceed. [8]\n Bye!\n" ; exit 1 ; }
	touch "${goodSwap}.SUCCESS"
	echo "\t [A8] ..."

	newON=1
}



####################################################################################################
###
###	Function to verify that the blocks assigned by dd are contiguous,
###	or show which groupings of blocks are contiguous.
###
####################################################################################################

verifyContiguousBlocks()
{
	fileBlocks="/tmp/$$.fileBlocks"

	filefrag -v /swapfile >"${fileBlocks}"

	echo ""
	cat "${fileBlocks}"

	tail -n +4 "${fileBlocks}" | grep -v '^/' |
		awk -v rootDev="${rootUUID}" -v swap="${goodSwap}" -v resume="./resume" 'BEGIN{
			getline ;
			split( $2, vals, "." ) ;
			begStrt=vals[1] ;

			split( $3, vals, ":" ) ;
			prevEnd=vals[1] ;

			split( $4, vals, "." ) ;
			resOffset=vals[1] ;

			printf("\n\n Verifiying contiguous block segments ...\n") ;
		}{
			split( $2, vals, "." ) ;
			curStrt=vals[1] ;

			split( $3, vals, ":" ) ;
			curLast=vals[1] ;

			if( prevEnd+1 != curStrt ){
				printf("\t %s - %s [contiguous blocks]\n", begStrt, prevEnd ) ;
				begStrt=curStrt ;
			} ;
			prevEnd=curLast ;
		}END{
			printf("\t %s - %s [contiguous blocks]\n\n", begStrt, curLast ) ;

			#resumeDirective=sprintf("resume=%s resume_offset=%s", rootDev, resOffset ) ;
			resumeDirective=sprintf("RESUME=%s resume_offset=%s", rootDev, resOffset ) ;

			printf("\n============\n IMPORTANT:\n============" ) ;


			printf("\n\t ADD the following\n") ;
			printf("\n\t\t    \"%s\" \n", resumeDirective ) ;
			printf("\n\t\t    to \t\"GRUB_CMDLINE_LINUX_DEFAULT\" \n" ) ;
			printf("\n\t\t    in \t\"/etc/default/grub\" \n" ) ;

			#printf("\n\t THEN   see PDF \"HIBERNATE__AskUbuntu.pdf\" for other steps before proceeding with following instructions ...\n\n") ;
			printf("\n\t THEN   see \"https://askubuntu.com/questions/6769/hibernate-and-resume-from-a-swap-file/1132154#1132154\" for other steps before proceeding with following instructions ...\n\n") ;

			printf("\n\t THEN   re-run \t\"update-grub\".\n\n") ;

			printf("%s\n\t# resume from %s\n", resumeDirective, swap ) >resume ;

			printf("\n\t MOVE the file \"%s\" to the required location\n", resume ) ;
			printf("\n\t\t    \"/etc/initramfs-tools/conf.d/resume\" \n" ) ;
			printf("\n\t THEN   re-run \t\"update-initramfs -u -k all\".\n\n") ;

		}'
}



####################################################################################################
###
###	START of process coding
###
####################################################################################################

NoSWAP=0
goodSwap="/swapfile"

if [ ! -s "${goodSwap}" ]
then
	echo "\n\t WARNING *** WARNING"
	echo "\n\t This system has NO existing SWAP file named '${goodSwap}'.\n\n\t This script will create a SWAPFILE optimized for the amount of installed RAM.\n\t This is intended to support the needs of the HIBERNATE function.\n\n\t Do you wish to proceed ? [y|N] => \c" ; read ans

	if [ -z "${ans}" ]
	then
		ans="n"
	fi

	case ${ans} in
		y* | Y* ) ;;
		* ) echo "\n\t Abandonned!\n Bye!\n" ; exit 1 ;;
	esac

	NoSWAP=1
fi

if [ ${NoSWAP} -eq 0 ]
then
	echo "\n\t WARNING *** WARNING\n\n\t This script will replace the existing SWAPFILE with \n\t a newer swapfile optimized for the amount of installed RAM.\n\n\t Do you wish to proceed ? [y|N] => \c" ; read ans

	if [ -z "${ans}" ]
	then
		ans="n"
	fi

	case ${ans} in
		y* | Y* ) ;;
		* ) echo "\n\t Abandonned!\n Bye!\n" ; exit 1 ;;
	esac
fi



####################################################################################################
###
###	Probing for eventual GRUB config changes
###
####################################################################################################

echo "\n Gathering disk info for updating GRUB configuration file later in process ..."

rootDev=`df / | grep '^/dev' | awk '{ print $1 }' | cut -f3 -d/ `
#rootUUID=`lsblk --pairs --output NAME,UUID,LABEL | grep \"${rootDev}\" | awk '{ gsub( "\"", "", $2 ) ; print $2 }' `
rootUUID=`blkid "/dev/${rootDev}" | awk '{ gsub( "\"", "", $3 ) ; print $3 }' `

lsblk --pairs --output NAME,UUID,LABEL |
	grep \"${rootDev}\" |
	awk '{
		split( $0, vals, " " ) ;
		printf("\n\t %s\n\t %s\n\t %s\n\n", vals[1], vals[2], vals[3] ) ;
	}'



####################################################################################################
###
###	Verifying required pre-conditions
###
####################################################################################################

### Number of GigaBYTES of RAM installed
#RAM=4
RAM=`free -h | grep '^Mem:' | awk '{ split( $2, vals, "." ) ; print vals[1]+1 ; }' `

if [ -z "${RAM}" ]
then
	echo "\n\t Unable to determine the amount of installed RAM.  Unable to proceed! [A1]\n Bye!\n" ; exit 1
fi
echo "\t [A1] ..."

echo "\n\t Amount of installed RAM detected => ${RAM} GB ..."

if [ ${RAM} -lt 2 ]
then
	SIZE=`expr ${RAM} \* 2 `
else
	SIZE=`expr ${RAM} + 2 `
fi

echo "\n\t Number of Gigabytes to be allocated => ${SIZE} GB ..."

if [ ${NoSWAP} -eq 1 ]
then
	newSwap="${goodSwap}"		### Intended new swapfile
else
	oldSwap="${goodSwap}"		### Name of existing SWAP file
	newSwap="${goodSwap}.new"	### Initial name for new swapfile

	testor=`grep "${oldSwap}" /etc/fstab | grep -v '^#' | awk '{ if( $1 == "/swapfile" ){ print $0 ; } ; }' `
	if [ \( -z "${testor}" \) -o \( ! -s "${oldSwap}" \) ]
	then
		echo "\n\t There is no '/swapfile' entry currently existing in '/etc/fstab'.  Unable to proceed! [A2]\n Bye!\n" ; exit 1
	fi
	echo "\t [A2] ..."

	echo "\n\t Required SWAP file entry detected in '/etc/fstab'.  Proceeding ..."
fi



####################################################################################################
###
###	Create the new swapfile
###
####################################################################################################

if [ \( ${NoSWAP} -eq 0 \) -a \( -s "${newSwap}" \) -a \( -f "${goodSwap}.SUCCESS" \) ]
then
	echo "\n\t New SWAP file, '${newSwap}', was created within last 24 hours.  Using that ..."
else
	createNewSwap
fi



####################################################################################################
###
###	Actions required to replace the old swapfile with the new swapfile
###
####################################################################################################

if [ ${NoSWAP} -eq 0 ]
then
	echo "\n\t Proceed with replacing old SWAP file with new SWAP file ? [y|N] => \c" ; read ans

	if [ -z "${ans}" ]
	then
		ans="n"
	fi

	case "${ans}" in
		y* | Y* ) ;;
		* ) echo "\n\t Leaving both old and new swapfiles in place!\n Bye!\n" ; exit 1 ;;
	esac



####################################################################################################
###
###	Rename old SWAP then re-enable as active with new name
###
####################################################################################################

	if [ -f "${goodSwap}.RENAMEOLD" ]
	then
		oldSwap="${goodSwap}.old"
		echo "\t [B3] ..."
		echo "\n\t Old SWAP file was already renamed as '${goodSwap}.old'.  Using that ..."
	else
		swapoff "${oldSwap}"
		test $? -eq 0 || { echo "\n\t Failed to disable '${oldSwap}' as swap partition. [B1]\n" ; exit 1 ; }
		echo "\t [B1] ..."

		mv -v "${oldSwap}" "${goodSwap}.old"	; RC=$?
		oldSwap="${goodSwap}.old"
		test ${RC} -eq 0 || { echo "\n\t Failed to disable '${oldSwap}' as swap partition. [B2]\n" ; exit 1 ; }
		ls -l "${oldSwap}"
		echo "\t [B2] ..."

		swapon "${oldSwap}"
		test $? -eq 0 || { echo "\n\t Failed to re-enable '${oldSwap}' as swap partition. [B3]\n" ; exit 1 ; }
		touch "${goodSwap}.RENAMEOLD"
		echo "\t [B3] ..."
	fi
fi



####################################################################################################
###
###	Rename new SWAP then re-enable as active with intended final name
###
####################################################################################################

if [ ${NoSWAP} -eq 0 ]
then
	if [ -f "${goodSwap}.RENAMENEW" ]
	then
		newSwap="${goodSwap}"
		echo "\t [C3] ..."
		echo "\n\t New SWAP file was already enabled as '${goodSwap}'.  Using that ..."

		newON=0
	else
		swapoff "${newSwap}"
		test $? -eq 0 || { echo "\n\t Failed to disable '${newSwap}' as swap partition. [C1]\n" ; exit 1 ; }
		echo "\t [C1] ..."

		mv -v "${newSwap}" "${goodSwap}"
		test $? -eq 0 || { echo "\n\t Failed to rename '${newSwap}' as '${goodSwap}'. [C2]\n" ; exit 1 ; }
		newSwap="${goodSwap}"
		ls -l "${newSwap}"
		echo "\t [C2] ..."

		newON=1
	fi
fi

if [ ${newON} -eq 1 ]
then
	#swapon "${newSwap}" 2>&1 |  awk '{ printf("\t\t%s\n", $0 ) }'
	swapon "${newSwap}"
	test $? -eq 0 || { echo "\n\t Failed to enable '${newSwap}' as swap partition. [C3]\n" ; exit 1 ; }
	touch "${goodSwap}.RENAMENEW"
	echo "\t [C3] ..."
fi

swapon --show



####################################################################################################
###
###	Disable and optionally remove/purge old original SWAP file
###
####################################################################################################

if [ -f "${goodSwap}.PURGEDOLD" ]
then
	echo "\t [D2] ..."
	echo "\n\t Old SWAP file, '${oldSwap}', was already purged."

	echo "\n\t Purge step completion flags (required prior to re-attempt) ? [y/N] => \c" ; read ans
	if [ -z "${ans}" ]
	then
		ans="n"
	fi

	case "${ans}" in
		y* | Y* )
			test -f "${goodSwap}.SUCCESS"	&& rm -fv "${goodSwap}.SUCCESS"
			test -f "${goodSwap}.RENAMEOLD"	&& rm -fv "${goodSwap}.RENAMEOLD"
			test -f "${goodSwap}.RENAMENEW"	&& rm -fv "${goodSwap}.RENAMENEW"
			test -f "${goodSwap}.PURGEDOLD"	&& rm -fv "${goodSwap}.PURGEDOLD"
			test -f "${goodSwap}.COMPLETE"	&& rm -fv "${goodSwap}.COMPLETE"
			;;
		* )	echo "\n\t Leaving all step completion flags in place:"
			ls -l "${goodSwap}."*
			;;
	esac
	echo "\n Bye!\n"
	exit 0
else
	if [ ${NoSWAP} -eq 0 ]
	then
		swapoff "${oldSwap}"
		test $? -eq 0 || { echo "\n\t Failed to disable '${oldSwap}' as swap partition. [D1]\n" ; exit 1 ; }
		echo "\t [D1] ..."

		echo "\n About to purge OLD SWAP file:"
		rm -i "${oldSwap}"

		test ! -s "${oldSwap}" && { echo "\n\t Old swap file, '${oldSwap}', has been purged. [D2]\n" ; }
		echo "\t [D2] ..."
		echo "\n DONE -- New SWAP file has replaced the old SWAP file as the active SWAP file!\n"
		touch "${goodSwap}.PURGEDOLD"
	else
		echo "\n DONE -- New SWAP file has been created and enabled as active SWAP!\n"
	fi

	touch "${goodSwap}.COMPLETE"
	exit 0
fi

Session Log:

root@OasisMega1:~# ./OS_Admin__CreateSwapfile.sh

	 WARNING *** WARNING

	 This system has NO existing SWAP file named '/swapfile'.

	 This script will create a SWAPFILE optimized for the amount of installed RAM.
	 This is intended to support the needs of the HIBERNATE function.

	 Do you wish to proceed ? [y|N] => y

 Gathering disk info for updating GRUB configuration file later in process ...

	 NAME="sdb3"
	 UUID="5dcf1a96-fa2e-42f5-9a08-37fcce0f0878"
	 LABEL="DB001_F1"

	 [A1] ...

	 Amount of installed RAM detected => 4 GB ...

	 Number of Gigabytes to be allocated => 6 GB ...

	 Creating new SWAP file '/swapfile' ...
6409945088 bytes (6.4 GB, 6.0 GiB) copied, 60 s, 107 MB/s
6144+0 records in
6144+0 records out
6442450944 bytes (6.4 GB, 6.0 GiB) copied, 60.7201 s, 106 MB/s
Filesystem type is: ef53
File size of /swapfile is 6442450944 (1572864 blocks of 4096 bytes)
 ext:     logical_offset:        physical_offset: length:   expected: flags:
   0:        0..   53247:   37326848..  37380095:  53248:
   1:    53248..  419839:   37382144..  37748735: 366592:   37380096:
   2:   419840..  423935:   37785600..  37789695:   4096:   37748736:
   3:   423936..  444415:   37793792..  37814271:  20480:   37789696:
   4:   444416..  901119:   37816320..  38273023: 456704:   37814272:
   5:   901120..  903167:   38307840..  38309887:   2048:   38273024:
   6:   903168..  907263:   38311936..  38316031:   4096:   38309888:
   7:   907264.. 1384447:   38320128..  38797311: 477184:   38316032:
   8:  1384448.. 1413119:   38866944..  38895615:  28672:   38797312:
   9:  1413120.. 1443839:   38897664..  38928383:  30720:   38895616:
  10:  1443840.. 1567743:   38930432..  39054335: 123904:   38928384:
  11:  1567744.. 1572863:          0..         0:      0:             last,unknown_loc,delalloc,eof
/swapfile: 12 extents found


 Verifiying contiguous block segments ...
	 0 - 1572863 [contiguous blocks]


============
 IMPORTANT:
============
	 ADD the following

		    "resume=UUID=5dcf1a96-fa2e-42f5-9a08-37fcce0f0878 resume_offset=37326848"

		    to 	"GRUB_CMDLINE_LINUX_DEFAULT"

		    in 	"/etc/default/grub"

	 THEN   see "https://askubuntu.com/questions/6769/hibernate-and-resume-from-a-swap-file/1132154#1132154" for other steps before proceeding with following instructions ...


	 THEN   re-run 	"update-grub".


	 MOVE the file "./resume" to the required location

		    "/etc/initramfs-tools/conf.d/resume"

	 THEN   re-run 	"update-initramfs -u -k all".

	 [A3] ...
	 [A4] ...
-rw------- 1 root root 6442450944 Nov 29 21:33 /swapfile
Setting up swapspace version 1, size = 6 GiB (6442446848 bytes)
no label, UUID=f076ae5b-3d1d-4776-b2ff-1f8ceb9b11ab
	 [A5] ...
	 [A6] ...
NAME       TYPE        SIZE   USED PRIO
/dev/sdb10 partition 996.2M 177.1M   99
/dev/sdb11 partition 996.2M 177.3M   99
/dev/sda2  partition     2G 180.1M   99
/swapfile  file          6G     0B   -2
	 [A7] ...
	 [A8] ...
swapon: /swapfile: swapon failed: Device or resource busy

	 Failed to enable '/swapfile' as swap partition. [C3]

root@OasisMega1:~#
